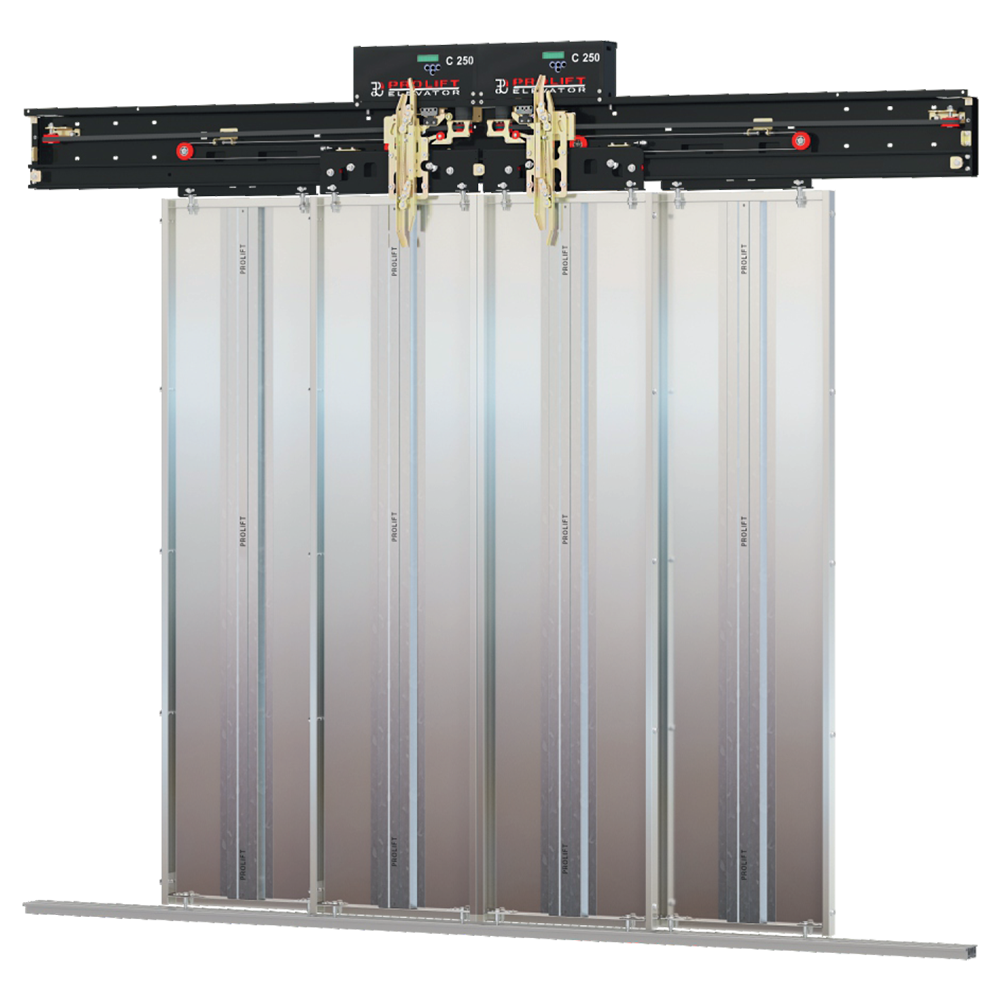

4 Panel Central Double Motorized Cabin Door

MS-C 250.... 4 Panel Central Double Motorized Cabin Door

The 4 panel telescopic car door has a DC-PWM drive without limit switch, compatible with 24 VDC-220 VAC command signals. The opening and closing power can be adjusted separately and is powered by a 24 V DC brushed motor. It offers practical installation with panel adjustment on three axes and reaches 800,000 open-close per year.

Various command signals: 24 VDC-220 VAC compatibility
Driver DC-PWM without limit switch
Door power Separately adjustable opening and closing power
Parameters Size, length and speed settings
Supply voltage 220 V AC
Spring stiffness adjustment: Available
Panel adjustment: Adjustable in three axes
Contact type: Can be set to NO/NC
Inlet size: 700 mm ~ 1300 mm
